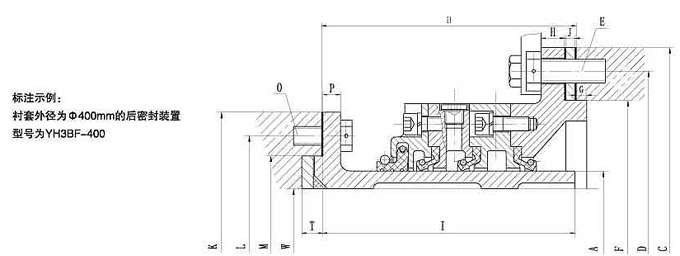

 | |  YH3BF剖分式油润滑艉轴密封装置 |  | | 说明：
适用于安装、更换、维修不需拆卸螺旋桨轴及舵叶，且润滑工作介质为油的各类船舶。
Remarks:
It is suitable for kinds of vessels that do not need to disassemble the propeller shaft and rudder blade while installing, changing and maintaining and whose lubricating working nedium is oil.
 | |
|
 | | YQ2B剖分式油润滑艉轴密封装置 | | | 说明：
轴套及前密封装置可采用剖分式或整体式结构。用户可以根据具体的要求选定。
Remarks:
The shaft housing and forward sealing apparatus can adopt a split or integral construction. Customers can make their own choice according to different requirements.
 (点击查看大图) | |
|

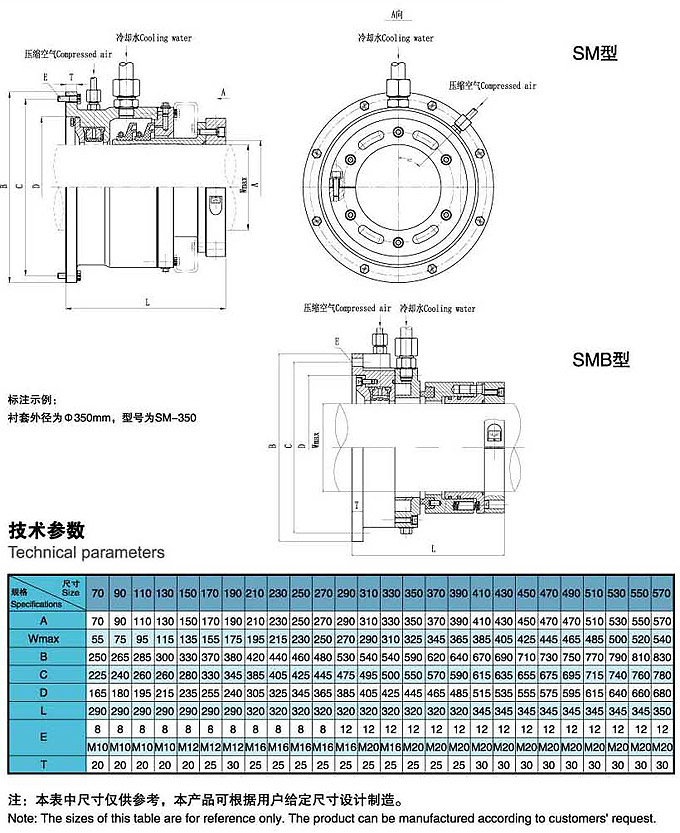

 | | SM/SMB型水润滑艉轴密封装置 | | | 说明：适用于以水为润滑介质的各种类型船舶。
轴向串动≤1mm时，可选用SM型：
轴向串动≤±3mm时，及转速较高时可选用SMB型。
Remarks:
It is suitable for kinds of vessels whose working medium is water.
When the axial vibration≤1mm,the SM type can be used;
When the axial vibration≤±3mm and then speed is high,the SMB type can be used.
 | |
|

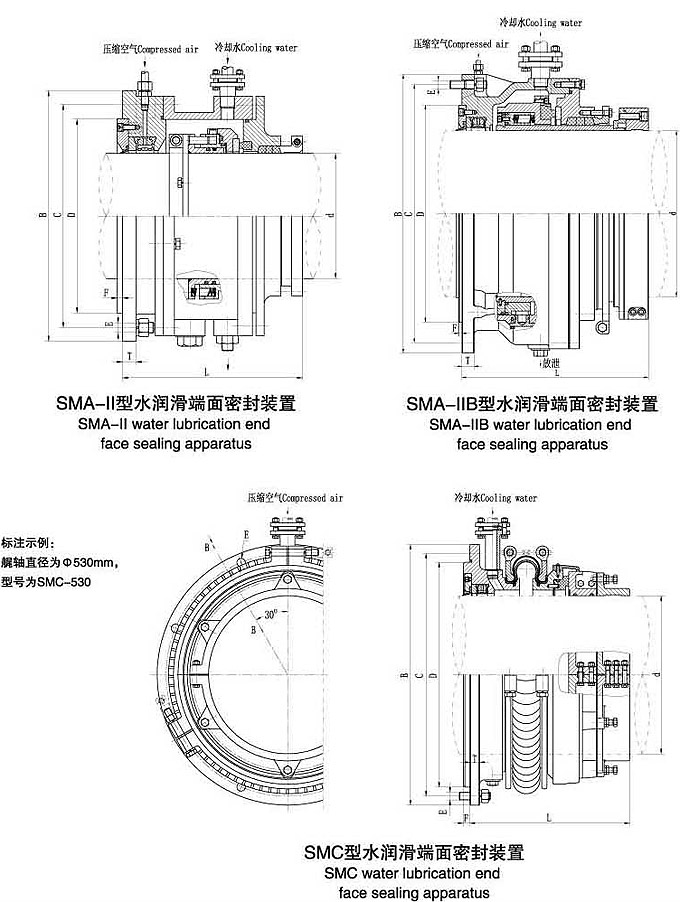

 | | SMA-II型/IIB型/SMC型水润滑端面密封装置 | | | 说明：
主要适用于艉轴直径及轴向串动较大，以水为润滑介质的各类船舶。
Remarks:
It is suitable for kinds of vessels that have a large stern shaft diameter and axial vibration and whose lubricating medium is water.
 | |
|

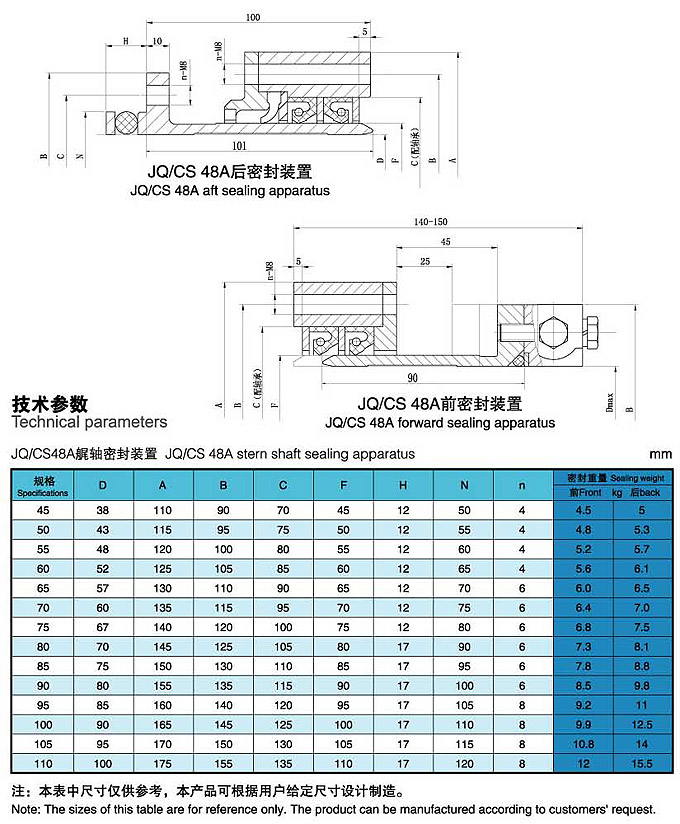

 | | JQ/CS 48A艉轴密封装置 | | | 说明：
长江及内河航行的船舶，特别是小型快艇，建议选用该类装置。
Remarks:
It is suggested for inland water vessels especially for small yachts.
 | |
|
|
|
